The online rapid measurement system is a test system designed by Mikwave, the system can realize the rapid measurement of the pitch plane pattern of the base station antenna and the detection of the amplitude and phase of the unit, which is suitable for the online inspection of the antenna production process, and can easily evaluate whether the antenna radiation performance is qualified and whether there are assembly abnormalities.

Technical advantages

High-precision autonomous near-field measurement technology
Dual-test mode: There are two different test modes: rapid measurement of suitable formula direction diagram and unit amplitude and phase detection
Higher measurement efficiency and easier operation
Stable and durable structural design

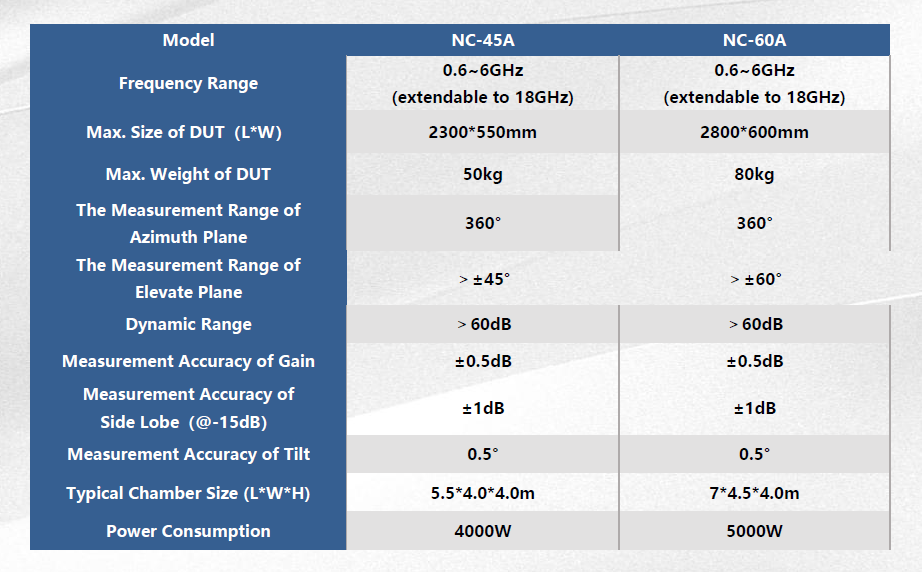

Product parameters
