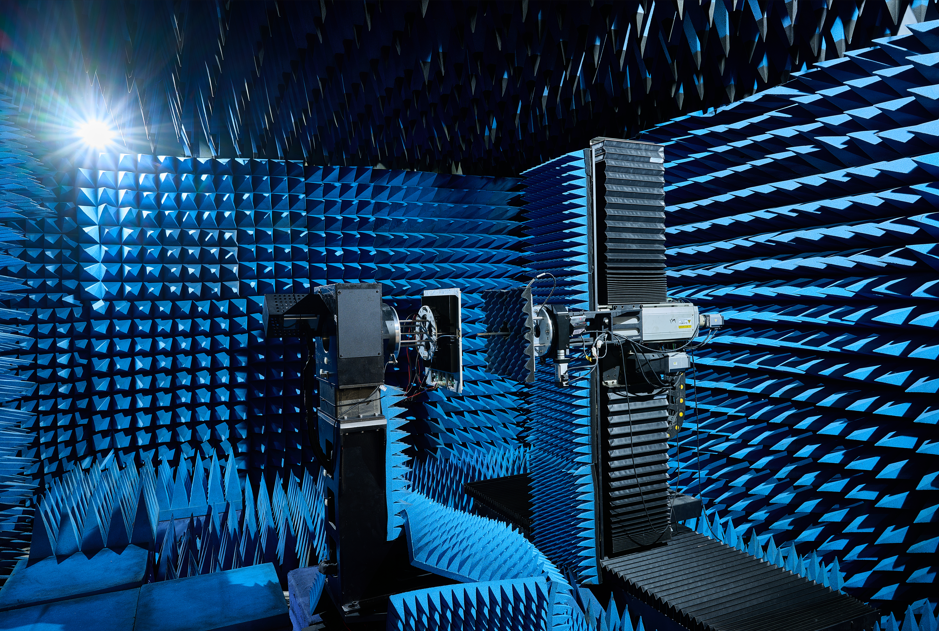

According to the needs of customers, different working frequency bands and different application scenarios, Mikwave can provide the systems for R&D testing, such as Compact Range Systems, Near-field Systems, Far-field Systems; and the other measurement systems for manufacture. Our one-stop solutions for customers, including hardware and software development, system integration, and engineering.

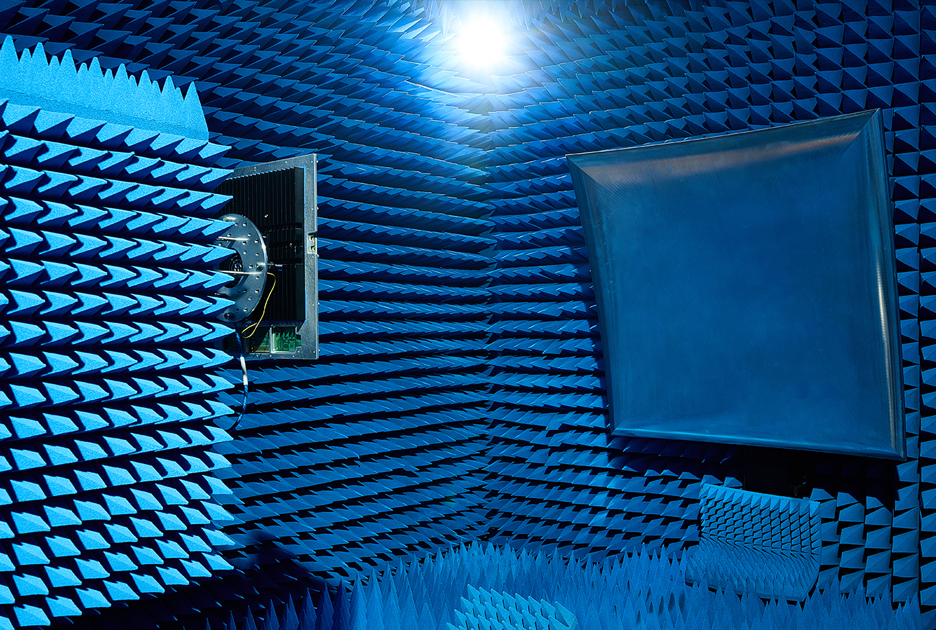

The compact field measurement system is specially designed according to the characteristics and difficulties of phased array antenna testing and provides a portable and easy-to-use test tool for small antenna design. The system is designed to reduce the cost, high efficiency and high quality of phased array antenna testing, and is especially suitable for the measurement and production of millimeter-wave phased array antennas.

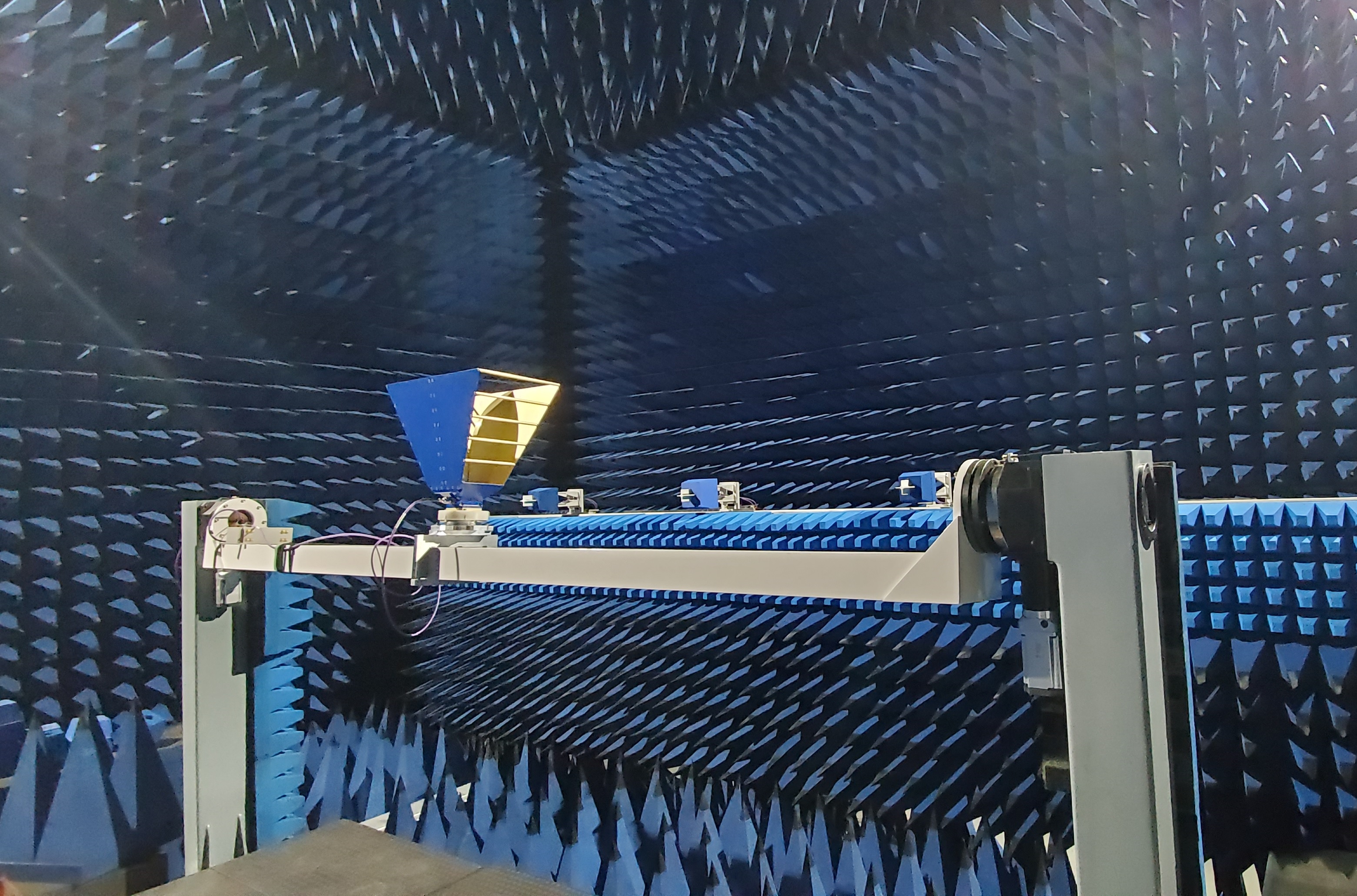

The new generation of 5G Massive MIMO array antennas and phased array antennas in the fields of satellite communication have the characteristics of narrow beam and high gain, because the truncation angle of the scanning surface does not need to be ≥ 90°, and horizontal planar near-field measurement is a better choice.
The cylindrical near-field measurement system meets the test needs of 4G/5G base station antennas of most communication equipment manufacturers, in view of the characteristics of wide azimuth beam and narrow pitch beam of base station antennas. The system can realize fast and accurate measurement of antenna multi-channel and multi-task systems and provides an advanced cost-effective measurement technology solution.

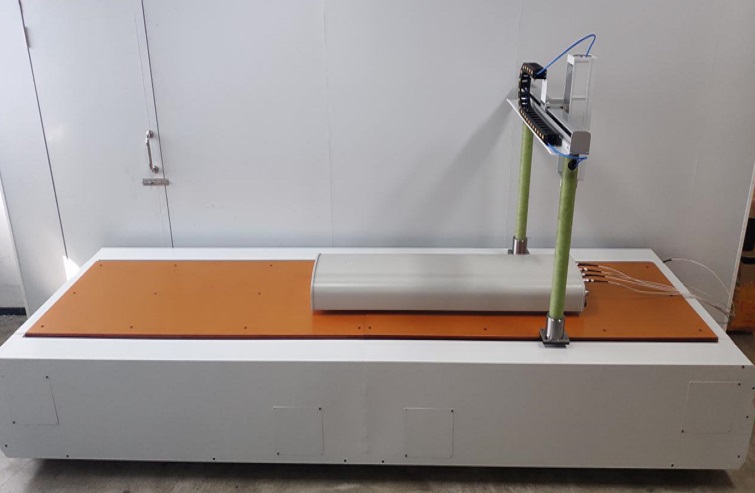

The online rapid measurement system is a test system designed by Mikwave, the system can realize the rapid measurement of the pitch plane pattern of the base station antenna and the detection of the amplitude and phase of the unit, which is suitable for the online inspection of the antenna production process, and can easily evaluate whether the antenna radiation performance is qualified and whether there are assembly abnormalities.
